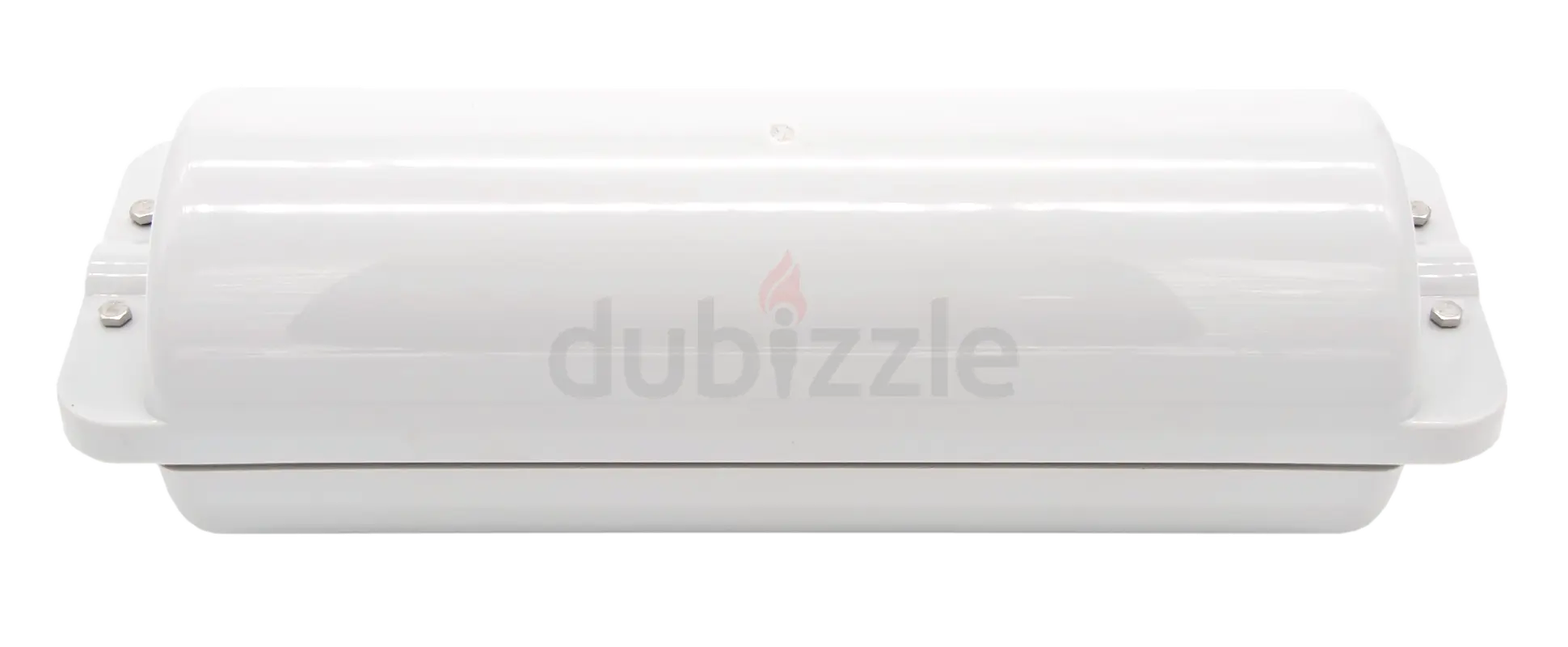

Power Line Diagnostic Module

AED 3,500

Mikhail

6 items live

Item Details

Condition

Perfect inside and out

Usage

Still in original packaging

Posted on: 15th December 2025

Description

Overview:
The Overhead Power Line Diagnostics System (PLDS) is the solution for the remote, real-time monitoring of high-voltage power lines. It enables electricity transmission and distribution operators to move from reactive maintenance to a predictive model, significantly improving grid reliability and safety.

Key Monitoring Features & Capabilities:

Comprehensive Wire Parameter Tracking: Real-time monitoring of conductor temperature, current, sag angle, vibration amplitude, and frequency.

Ice & Snow Load Monitoring: Accurately measures ice load in kilograms and wire sag in meters, providing critical data for preventing accidents at crossings over roads and waterways.

Fault Detection & Analysis: Detects short-circuit events, capturing their magnitude, direction, and an event oscillogram for detailed analysis. Identifies wire breaks within an anchor section.

Mechanical Stress Monitoring: Tracks wind loads and detects dangerous conductor galloping.

Dynamic Line Rating (DLR): Enables increased line capacity by dynamically assessing real-time operating conditions.

Safety Compliance: Monitors the distance between the wire and ground obstacles to ensure regulatory compliance.

Key Benefits for Your Business:

Faster Response: Drastically reduces the time to indicate, locate, and repair faults.

Reduced Downtime: Minimizes power outage duration and associated costs.

Cost Savings: Lowers operational expenses for repairs, maintenance, and emergency dispatches.

Accident Prevention: Early detection of ice formation and overloading helps prevent wire breakage and major failures.

Enhanced Safety: Improves overall grid safety for both the public and maintenance personnel.

Target Customers:

- Electricity Transmission and Distribution System Operators (TSOs/DSOs);
- Large Industrial Energy Consumers with private power lines;
- Smart City and Renewable Energy Infrastructure Projects.

Special Offer: FREE INDUSTRIAL TRIAL FOR POWER GRID COMPANIES!
To demonstrate the system's proven effectiveness, ServiceEnergy Ltd offers a limited-time trial:
- Free installation of the PLDS on a selected power line of your network.
-Full access to the web analytics interface and real-time Telegram alerts.
-Comprehensive technical and regulatory support throughout the trial period.

System Specifications:
Parameter Specification
Dimensions 390 x 130 x 134 mm
Ingress Protection IP56
Weight 3 kg
Communication Channels GSM 900/1800, Radio channel (for mesh networking)
Power Supply Harvested directly from the power line
Backup Power Minimum 2 hours of autonomy via supercapacitors
Minimum Operating Current 10 A
Ambient Temperature Range -40 °C to +50 °C
Conductor Temperature Range -40 °C to +125 °C
Current Measurement Range 0 - 200 A
Sag Angle Measurement Range 0 - 90 degrees
Vibration Frequency Range 1 - 1000 Hz
