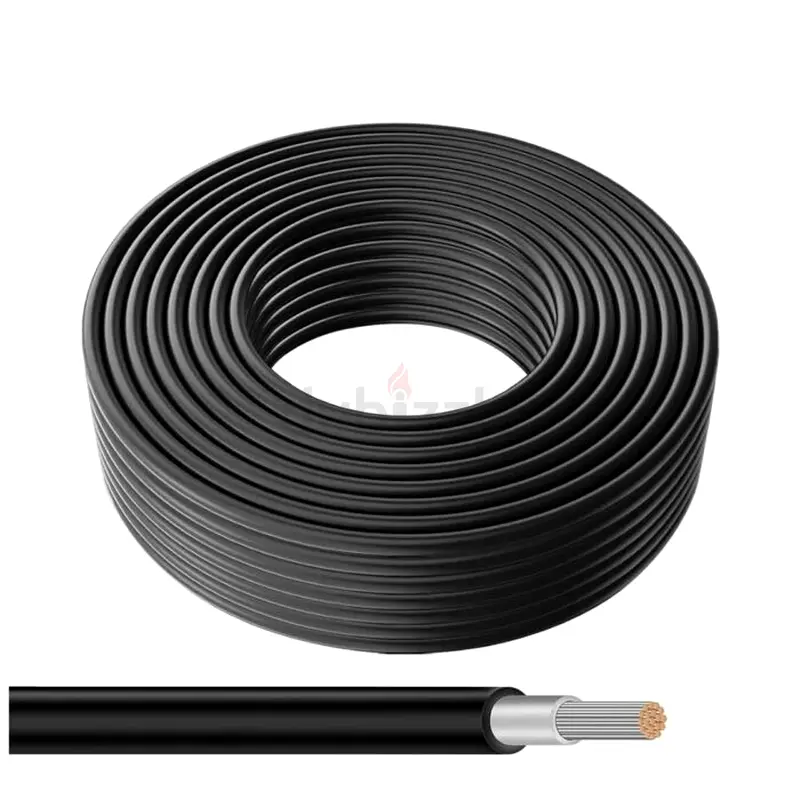

Solar Cable 10mm Black Tinned Copper 100 Meter Role
درهم 878
تفاصيل السلعة
الحالة
ممتازة من الداخل والخارج
مدى الإستخدام
لا يزال في التغليف الأصلي
تم النشر بتاريخ: 14 أغسطس 2026
الوصف
The 10mm solar cable is specially designed for photovoltaic power systems where higher current capacity and long-term outdoor durability are required. It is suitable for solar panel wiring, inverter connections, battery connections, combiner boxes, and other DC solar applications.
The cable uses a fine wire tinned copper conductor to provide excellent conductivity, flexibility, and protection against corrosion. Its insulation and sheath are made from UV-resistant, halogen-free, flame-retardant, cross-linked material, making it suitable for harsh outdoor environments, industrial areas, agricultural applications, and covered underground installations.
This cable is suitable for fixed installations, free-hanging systems, and movable solar applications.
Key Features:
Cable Size: 10mm²
Conductor: Fine wire tinned copper
Approx. Cable Diameter: 7.07mm
Strong UV and weather resistance
Halogen-free and flame-retardant insulation
Suitable for indoor and outdoor solar systems
Suitable for solar panels, batteries, inverters, and combiner boxes
Flexible construction for easy installation
Resistant to heat, cold, moisture, oil, acid, alkaline, and ammonia
Minimum ambient temperature: -40°C
Maximum ambient temperature: +90°C
Maximum conductor operating temperature: +120°C
Short-circuit temperature: 250°C for 5 seconds
Voltage Rating: AC 0.6/1.0kV
PV System Voltage: DC up to 2.0kV possible
Current Carrying Capacity:
Single cable free in air: 98A
Single cable on surface: 93A
Two loaded cables touching on surface: 79A
Max. conductor resistance at 20°C: 1.95 Ω/km
The cable uses a fine wire tinned copper conductor to provide excellent conductivity, flexibility, and protection against corrosion. Its insulation and sheath are made from UV-resistant, halogen-free, flame-retardant, cross-linked material, making it suitable for harsh outdoor environments, industrial areas, agricultural applications, and covered underground installations.
This cable is suitable for fixed installations, free-hanging systems, and movable solar applications.
Key Features:
Cable Size: 10mm²
Conductor: Fine wire tinned copper
Approx. Cable Diameter: 7.07mm
Strong UV and weather resistance
Halogen-free and flame-retardant insulation
Suitable for indoor and outdoor solar systems
Suitable for solar panels, batteries, inverters, and combiner boxes
Flexible construction for easy installation
Resistant to heat, cold, moisture, oil, acid, alkaline, and ammonia
Minimum ambient temperature: -40°C
Maximum ambient temperature: +90°C
Maximum conductor operating temperature: +120°C
Short-circuit temperature: 250°C for 5 seconds
Voltage Rating: AC 0.6/1.0kV
PV System Voltage: DC up to 2.0kV possible
Current Carrying Capacity:
Single cable free in air: 98A
Single cable on surface: 93A
Two loaded cables touching on surface: 79A
Max. conductor resistance at 20°C: 1.95 Ω/km
